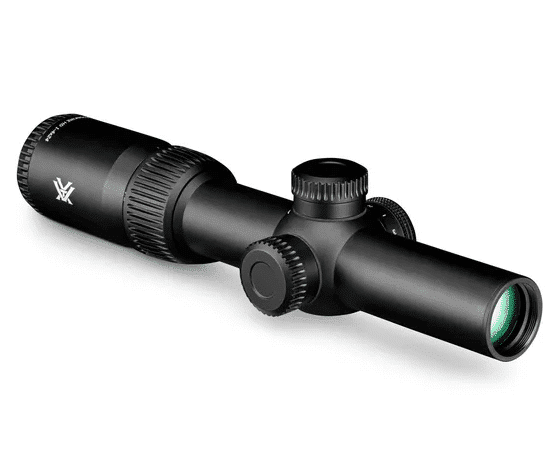

The Crossfire® HD 1-4×24 is your go-to for close- to mid-range hunting
Quick target acquisition
Lightweight handling
Illuminated center dot
It’s a LPVO versatile enough for any rifle where agility matters
Crossfire® HD 1-4×24 Dimensions (in inches)
Recommended Use: Hunting
Lengths:
L1: 9.5
L2: 2.7
L3: 1.8
L4: 5.8
L5: N/A
L6: 3.6
HEIGHTS:
H1: 1.2
H2: 1.7
SPECS
Magnification: 1-4x
Objective Lens Diameter: 24 mm
Focal Plane: Second Focal Plane
Reticle: Illuminated Dead-Hold® 2A BDC (MOA)
Eye Relief: 3.8″
Field of View: 109.5′ – 26.7′ @ 100 yds.
Turret Style: Capped
Tube Size: 30mm
Adjustment Graduation: 1/2 MOA
Travel Per Rotation: 30 MOA
Max Elevation Adjustment: 130 MOA
Max Windage Adjustment: 130 MOA
Parallax Setting: 100 yds.
Length: 9.5″
Weight: 15.3 oz.
ADDITIONAL NOTES:
HD Optical System: Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission
Illuminated Reticle: Provides precise aiming under low-light conditions
Fully Multi-Coated Lenses: Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance
Fast-Focus Eyepiece: Allows for quick and easy reticle focusing
Aircraft Grade Aluminum: Constructed from a solid block of aircraft-grade aluminum for strength and rigidity
Low-Glare Matte Black Anodize: Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position
Waterproof: Designed to withstand harsh weather conditions
Fogproof: Designed to withstand a wide range of temperatures
Shockproof: Designed to withstand the highest levels of recoil and impact.

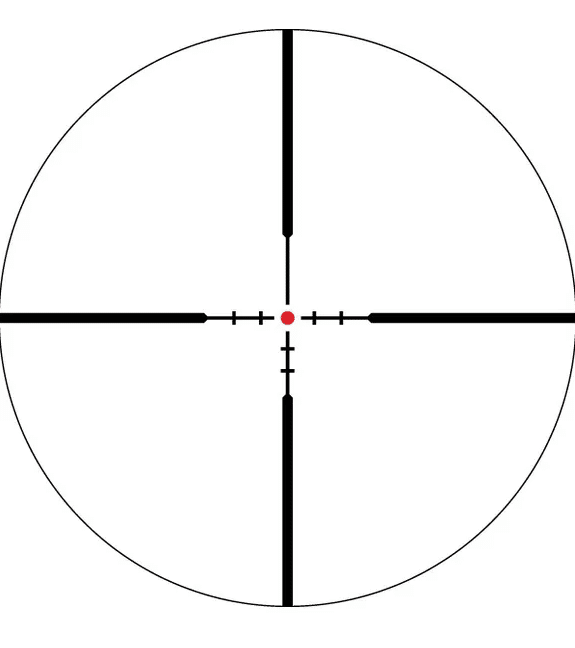

Reticle:
ILLUMINATED DEAD-HOLD® 2A BDC (MOA)
Pairs the trusted holdover and windage guidance of the Dead-Hold® BDC with an illuminated floating center dot for fast, precise aiming in low light
Designed for hunting and shooting at varying distances where holdover estimation matters
